How to Generate SLD
Steps to Generat SLD.

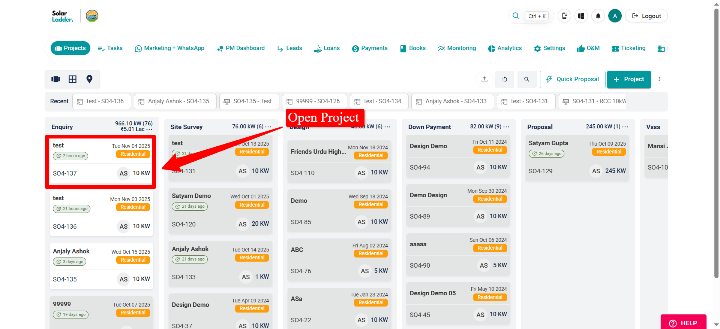

1️⃣ Open your Project

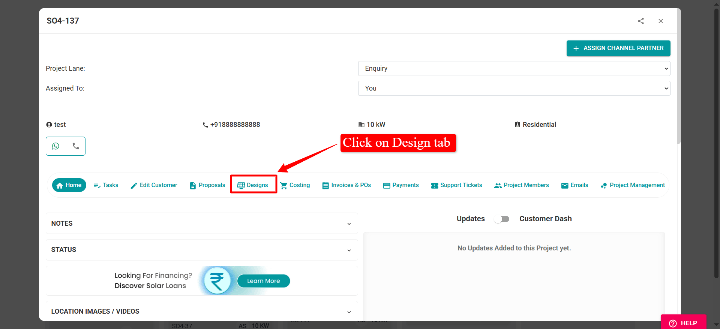

2️⃣ Go to the Design Tab

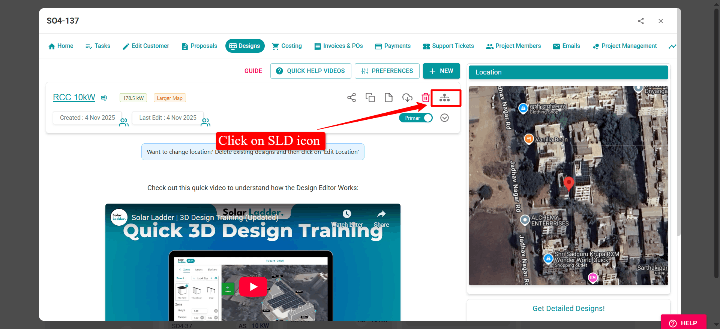

3️⃣ Click on the SLD Icon
4️⃣ Fill in the Basic Information

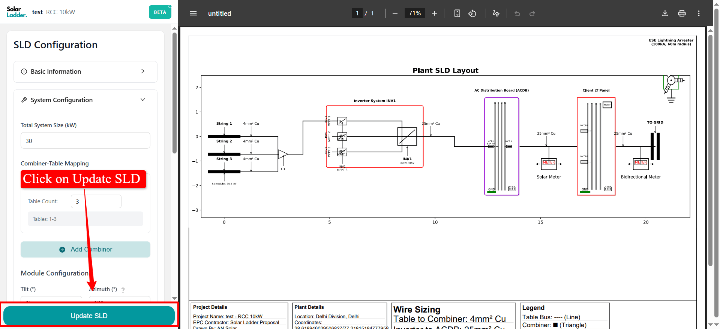

5️⃣ Hit Update SLD
.png?alt=media&token=a58a9710-abc9-46d9-8917-d4fb7b9a9a6a)
Your Single Line Diagram will be generated in just a few seconds ⚡
